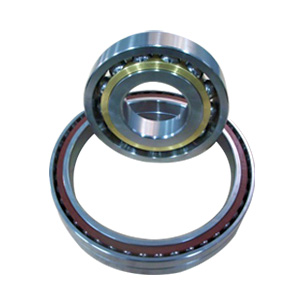

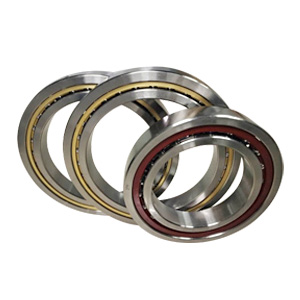

Double Row Angular Contact Ball Bearings

Double row angular contact ball bearing is a non-separable bearing, which can bear large radial and axial bidirectional combined loads and moment loads mainly based on radial loads,
Availability:
Inquire

Double row angular contact ball bearing:

Double row angular contact ball bearing is a non-separable bearing, which can bear large radial and axial bidirectional combined loads and moment loads mainly based on radial loads,

and can limit the bidirectional load of the shaft or housing Axial displacement, the contact angle is usually 30°, and it has better rigidity compared with single row bearings.

Double row angular contact ball bearings

The structure is equivalent to a pair of back-to-back single-row angular contact ball bearings, but with a narrow width, it is especially suitable for applications with high rigidity requirements. Double row angular contact ball bearings generally use nylon cages or brass solid cages.


Designation Basic Sized Abutment and fillet dimensions Basic load ratings Limit Speed weight
(Dosign) da Da Db l rb dyramic sttc

inner ring outer ring width chamfer cr Cor Geraso oil
New old d D
r1.2 r3.4 min max max max max

mm mm KN r/min kg
4030D 4086130 150 225 75 2.1 1.1 172 -. 211 2 1 160 280 1600 2000 9.6
4030x2D 86730 150 225 73 2.1 1.1 172 . 211 2 1 160 280 1600 2000 9.4
4030x2Dw33 86730/w33 150 225 73 2.1 1.1 172 -. 211 2 1 160 280 1600 2000 9.4
4030x2DTW33 -- 150 225 73 2
172 . 211 2 1 160 280 1600 2000 9.4
4030x3D 86830 150 230 70 2.1
174 -. 216 2 1 160 280 1600 2000 11.5
4030x3Dc 156730K 1500 210 56 2
162 192 -. 2 1 111 197 1600 2000 6.3
3230x2D/w33 -- 150 270 90 3 1.1 189 -- 240 2.5 1 225 405 1600 2000 23.3
4032D 4086132 160 240 80 2.1 1.1 185 -. 228 2 1 190 340 1450 1850 12
3032x2D 3086132KH 160 240 58 2.1
184 -. 226 2 1 155 268 1450 1850 9.7
4032x2Dc 156132 160 240 76 2.1
176 220 -- 2 1 190 340 1450 1850 13.5
4932x2Dc 156932 160 215 56 2
172 199 -- 2 1 97 166 1600 2000 8.6
4932x3Dc 156132K 160 239.8 76 2.1 1.1 176 220 -- 2 1 191 340 1450 1850 12
4032x3Dc 156832W33 160 249.5 84 2.1
178 224 .. 2 1 210 385 1450 1850 15
4034D 4086134 170 260 90 2.1
197 -- 242 2 1 208 385 1300 1700 15.5
4034x2DC 156134 170 260 84 2
188 234 -- 2 1 208 385 1300 1700 15
4034x3D 4086734 170 259.5 84

197 -. 242 2 1 208 385 1300 1700 15
4934x3Dc 156734H 170 230 56 2l
183 212 .. 2 1 105 162 1450 1850 7
4036D 4086136 180 280 100 2.1
211 - 262 2 1 237 450 1150 1500 24
4936x2Dc 156736/w33 180 259.5 66 2l
196 237 -. 2 1 180 340 1250 1600 1
4936x3Dc 156936/w33 180 250 70 2
193 231 .. 2 1 166 320 1450 1850 9.2
4036x3Dc 156836 180 259.5 80 2.1
196 237 -- 2 1 180 340 1250 1600 14.5
4936x3D-1 86736HK 180 259.5 60 2
207 -. 239 2 1 134 269 1250 1600 11
4036x3DC-1 156136 180 280 92 2.1 1.1 202 271 -. 2 1 237 450 1150 1500 19.7
4936x3DW33 86736 180 259.5 66 2.1 1.1 204 244 -. 2 1 180 340 1250 1600 11
4036x2DTWa3 -- 180 280 92

211 .. 244 2 1 237 450 1150 1500 19.7
4038D 4086138 190 290 100 2.1
221 . 272 2 1 245 480 1100 1400 26.2
4038Dc 156138 190 290 92 2.1 1.1 208 260 .. 2 1 245 480 1100 1400 23
4938x3D 86738 190 269.5 66

214 -- 254 2 1 183 290 1150 1500 12.5
4938x3Dw33 86738/W33 190 269.5 66

214 .. 254 2 1 183 290 1150 1500 12.5
4040D 4086140 200 310 109

234 -. 291 2 1 286 458 1000 1300 33.1
4040x3D 4086140K 200 309.5 102

234 .. 291 2 1 286 419 1000 1300 33
4040x3Dc 156140 200 310 96

220 277 -. 2.5 1 286 458 1000 1300 29.5
4940x3D 86740 200 279.5 76

224 .. 267 2 1 206 400 1100 1400 15
4940x3DC 156740 200 280 76

214 256 .. 2 1 206 400 1100 1400 15.2
4940x3D-1 86840 200 289.5 76

227 .. 272 2 1 226 458 1100 1400 15.5
4040x3DC-1 156940 200 280 80 2.1 1.1 214 256 -- 2 1 206 400 1100 1400 16
4940x3Dw33 86740/W33 200 279.5 76 2.1 1.1 224 . 267 2
206 400 1100 1400 15
4940x3D-1w33 -- 200 289.5 76 2.1 1.1 227 -- 272 2 1 226 458 1100 1400 15.2
4044D 4086144 220 340 118 3 1.1 255 . 317 2.5 1 310 670 850 1100 33.5
4944x3D 86744 220 309.5 76 3
247 -- 292 2.5
225 455 900 1200 22.1
2044x3D 86744/w33LG 220 329.5 76 3 1.5 257 . 302 2.5 1 226 470 850 1100 21.4
4944x3DW33 86744W33 220 309.5 76 3 1.1 247 -- 292 2.5 1 225 455 900 1200 22.1
4946X1D 86746 230 329.5 80 3 1.1 261 . 309 2.5 1 242 500 850 1100 23.5
4946x3D 156746 230 329.5 80 3
251 300 .. 2.5 1 242 500 850 1100 23.5
4946x1DW33 867461W33 230 329.5 80 3 1.1 261 -. 309 2.5 1 242 500 850 1100 23.5
4946x3D/W33 156746/W33 230 329.5 80 3 1.1 251 300 .. 2.5 1 242 500 850 1100 23.5
4048D 4086148 240 360 118 3
276 -. 338 2.5
315 700 850 1100 44
4048X1D 4086148K 240 359.5 118 3 1.1 276 -. 338 2.5 1 315 700 850 1100 44
4048x3D 86748K 240 370 112 3 1.1 280 -- 342 2.5 1 315 700 850 1100 46
4052D 4086152 260 400 140 4
302 -. 375 3 2 436 735 800 1050 60
4952x3D 86752 260 369.5 92 4
296
347 3 2 270 600 850 1100 30.5
4952x3DC 156152 260 400 130 4
288 359 375 3 2 436 735 800 1050 56
4952X3Dw33 86752W33 260 369.5 92 4 2.1 296 .. 347 3 2 270 600 850 1100 30.5
4056D 4086156 280 420 140

322 .. 392 3 2 410 950 800 1050 64.2
4956x3D 86756 280 390 92 4
312 .- 369 3 2 305 715 850 1100 40
4956x3D 86756 280 390 92 4
312 -- 369 3 2 305 715 850 1100 40
4956X3D-1 86756K 280 389.5 92 4
312 .. 369 3 2 305 715 850 1100 35
4956x3Dcw33 156756/w33 280 389.5 92

301 359 -- 3 2 310 745 850 1100 35
4956x3D-1w33 86756K/W33 280 389.5 92 4
312 -. 369 3 2 305 715 850 1100 35
4956x3Dw33 -- 280 390 92 4
312
369 3 2 340 720 850 1100 40
4060D 4086160 300 460 160 4
350 -- 425 3 2 425 820 750 1000 77.8
4960x3D 86760 300 419.5 112

335 .. 397 2.5 1 360 678 750 1000 50.5
4030x2Dw33 156760w33 300 459.5 112

329 412 -- 3 2 425 820 750 1000 68
4960x3Dcwa3 156860rw33 300 459.5 100 4
329 412 -- 3 2 425 820 750 1000 66.5
4060x2Dw33 -- 300 460 148 4
350 -. 425 3 2 425 820 750 1000 84.4
4060x2Dcwa3 156160K 300 460 148 2.1
335 411 -- 3 1 425 820 750 1000 84.4
4064D 4086164 320 480 160
1.5 365 .. 451 3 1.5 505 1360 700 950 98
4064x3D 86764 320 459.5 140 4
362 .. 432 3 2 400 1020 750 1000 80
4064x3DW33 86764/W33 320 459.5 140 4
362 .- 432 3 2 400 1020 750 1000 80
4068D 4068168 340 520 180 5
391 .. 488 4 2 600 1720 700 950 130.5
4068Dw33 .. 340 520 180 5
391 .. 488 4 2 600 1720 700 950 130.5
4972x2DW33 .. 360 480 112 3 1.1 396 -- 458 2.5 1 488 1100 670 900 57
4072X2Dw33 .. 360 540 164 5
414 -- 508 4 2 741 1700 630 850 125
4976x2Dw33 .. 380 520 130 4 1.5 422 -- 495 3 1.5 420 1170 670 900 83
4076x2Dwa3 -. 380 560 164 5
434 -- 528 4 2 468 1520 600 800 133
4980x2Dw33 .. 400 540 130 4 1.5 442 -- 515 3 1.5 530 1210 600 800 84
4080x2Dw33 . 400 600 180 5
460 -- 564 4 2 952 2000 560 750 170
4984x2DW33 -. 420 560 130 4 1.5 462 -- 532 3 1.5 590 1300 560 750 8g
4084x2Dw33 .. 420 620 180 5
480 -- 584 4 2 870 2100 530 700 177
4088x2Dw33 . 440 650 188 6
502 -- 612 5 2.5 720 2340 500 670 200
4992x2DW33 -- 460 620 148 4 1.5 508 -- 597 3 1.5 810 2000 950 1400 116
4092x2D.w33 .. 460 680 200 6 3 526 -- 640 5 2.5 1100 2800 480 630 240
4096x2Dw33 . 480 700 200 6
546 -- 660 5 2.5 1000 2600 480 630 240
49/500x2Dwa3 -. 500 670 156 5 2 551 -- 639 4 2 860 2400 500 670 156
40/500x2Dwa3 .. 500 720 200 6
566 -- 680 5 2.5 1020 2700 450 600 260
