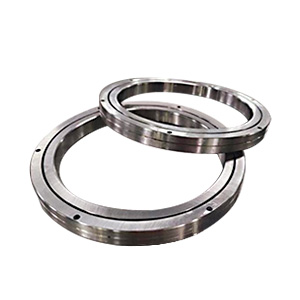

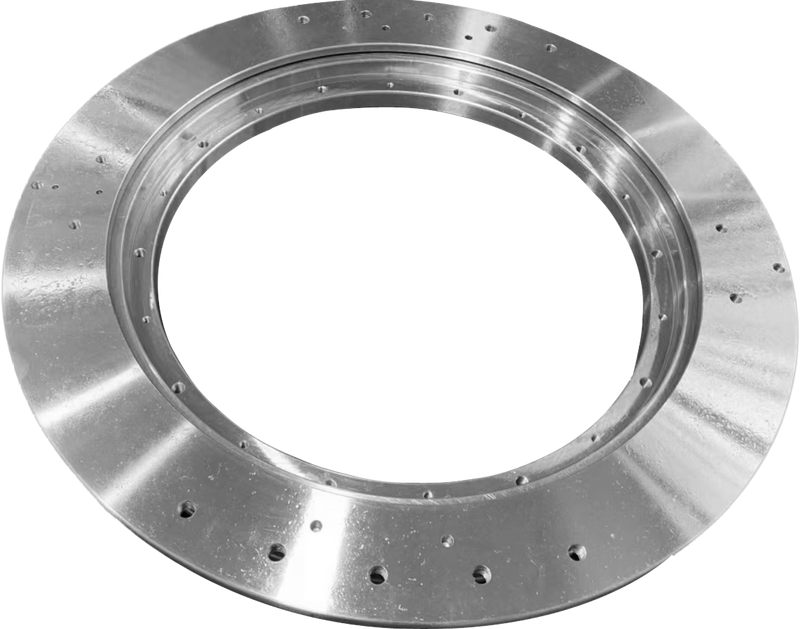

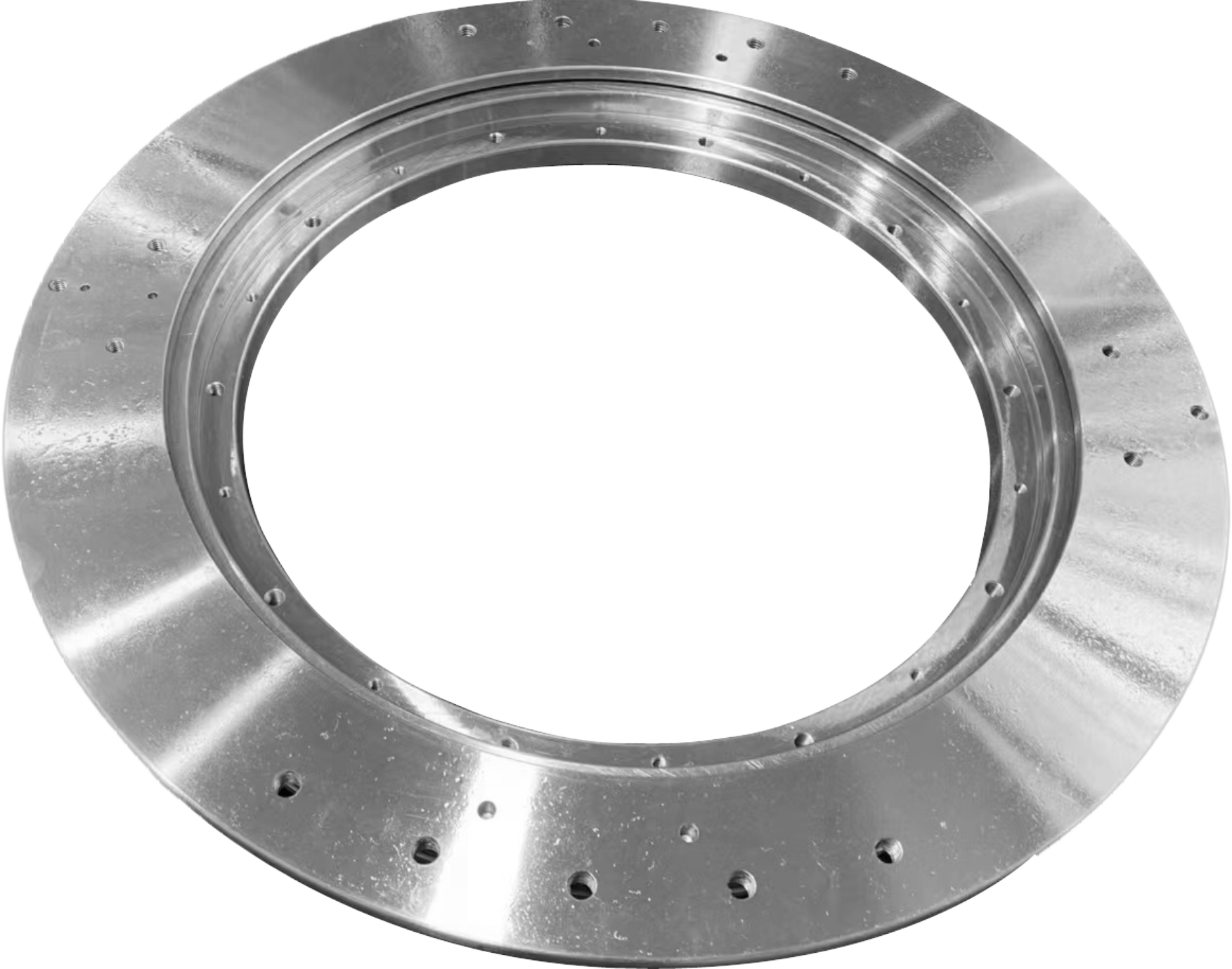

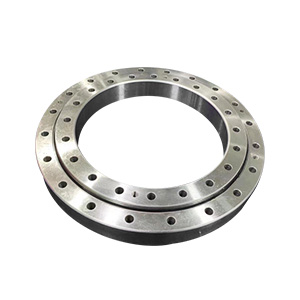

Crossed Roller Bearings

Advantages of Crossed Roller Bearings: Crossed roller bearings have the characteristics of high rigidity, high rotational accuracy, stable rotational torque and high load capacity.

Availability:



Inquire

Product Description

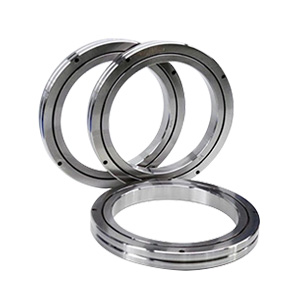

RB type (outer ring split type)

RB series model is the basic type of crossed cylindrical roller bearing. The size of inner and outer rings is minimized. Its structure is that the outer ring is split type, and the inner ring is an integral design, which is suitable for parts that require high rotation accuracy of the inner ring. .

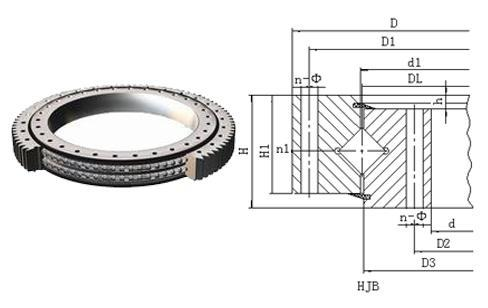

Crossed Roller Bearings

RE type (inner ring split type)

The RE series model is a new design concept from the XRB type, mainly with the X type. Its structure is that the inner ring is divided and the outer ring is designed in one piece, which is suitable for the high-precision production requirements of the outer ring rotation type.

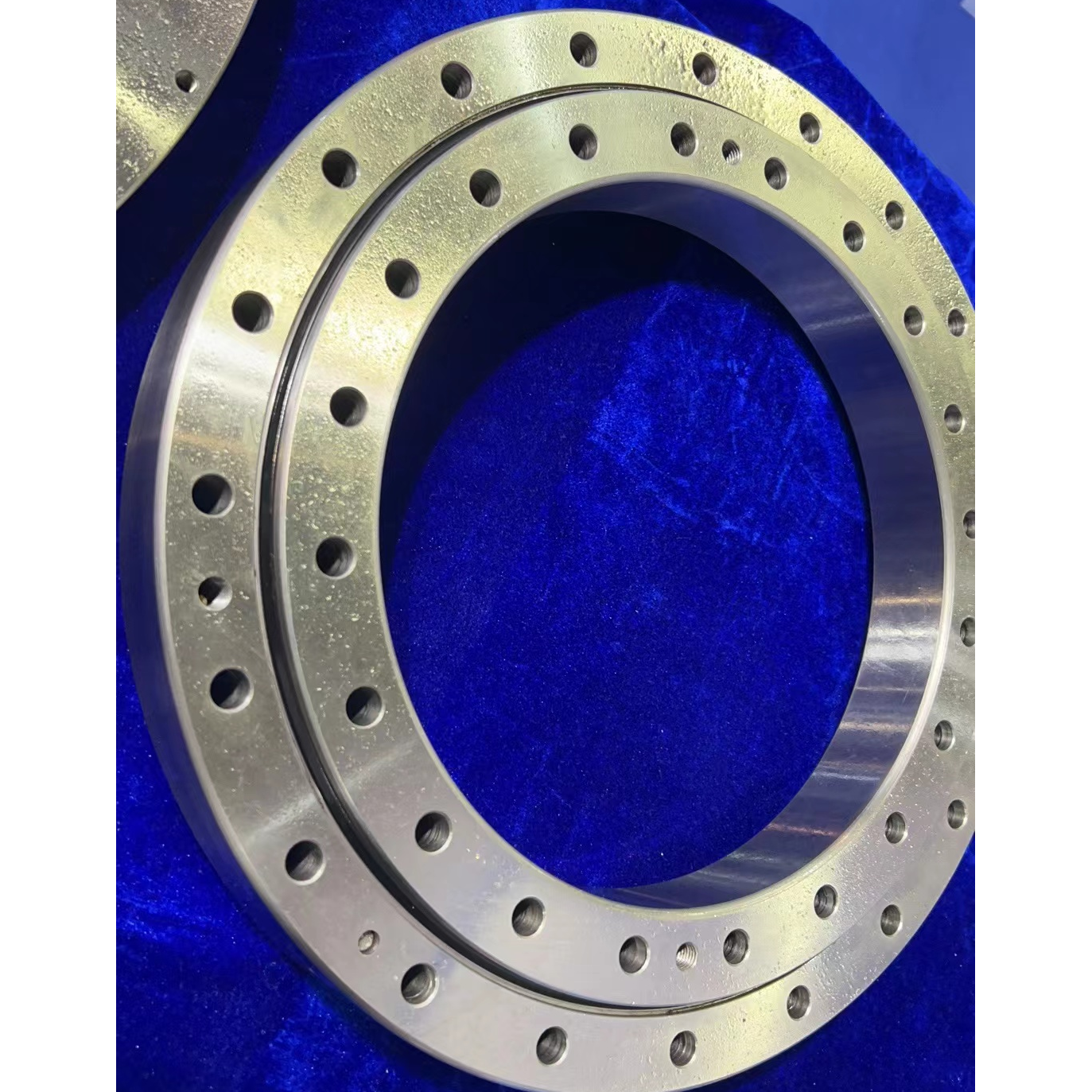

RU type (integrated inner and outer ring type)

The RU series model does not need a fixed flange and a support seat due to the machining of the mounting holes. In addition, since the integrated inner and outer ring structure with seat is adopted, installation has little effect on performance, so stable rotation accuracy and torque can be obtained. Can be used for outer and inner ring rotation.

SX type (outer ring split type)

The structure of the SX series is similar to the RB series. The outer ring is a two-part structure, connected by three spring snap rings, and the inner ring is designed in one piece, which is suitable for places requiring high rotation precision of the inner ring.

CRBH type (integrated inner and outer ring type)

The inner and outer rings of the CRBH series are of one-piece structure for rotation of the outer and inner rings.

CRBC type (outer ring split type)

The CRBC type structure is that the outer ring is a split type, the inner ring is a one-piece design, and a full complement roller bearing with a cage is provided. It is suitable for parts that require high rotation precision of the inner ring.

RB系列											单位：mm
型号	主要尺寸						靠肩尺寸		基本额定负荷（径向）		重量 (Kg)
	内径 d	外径 D	滚子节圆直径 dp	油孔		r	ds	Dh	C KN	Co KN
	内径 d	外径 D	滚子节圆直径 dp	a	b	r	ds	Dh	C KN	Co KN
RB12016	120	150	134.2	3.5	1.6	1	127	141	24.2	43.2	0.72
RB12025	120	180	148.7	3.5	2	2	133	164	66.9	100	2.62
RB13015	130	160	144.5	3.5	1.6	1	137	152	25	46.7	0.72
RB13025	130	190	158	3.5	2	2	143	174	69.5	107	2.82
RB14016	140	175	154.8	2.5	1.6	1.5	147	162	25.9	50.1	1
RB14025	140	200	168	3.5	2	2	154	185	74.8	121	2.96
RB15013	150	180	164	2.5	1.6	1	157	172	27	53.5	0.68
RB15025		210	178	3.5	2	2	164	194	76.8	128	3.16
RB15030		230	188	4.5	3	2	173	211	100	156	5.3
RB16025	160	220	188.6	3.5	2	2	173	204	817	135	3.14
RB17020	170	220	191	3.5	1.6	2	184	198	29	62.1	2.21
RB18025	180	240	210	3.5	2	2	195	225	84	143	3.44
RB19025	190	240	211.9	3.5	1.6	1.5	202	222	41.7	82.9	2.99
RB20025	200	260	230	3.5	2	2.5	215	245	84.2	157	4
RB20030		280	240	4.5	3	2.5	221	258	114	200	6.7
RB20035		295	247.7	5	3	2.5	225	270	151	252	9.6
RB22025	220	280	250.1	3.5	2	3	235	265	92.3	171	4.1
RB24025	240	300	269	3.5	2	3	256	281	68.3	145	4.5
RB25025	250	310	277.5	3.5	2	3	265	290	69.3	150	5
RB25030		330	287.5	4.5	3	3	269	306	126	244	8.1
RB25040		355	300.7	6	3.5	3	275	326	195	348	14.8
RB30025	300	360	328	3.5	2	3	315	340	76.3	1/8	5.9
RB30035		395	345	5	3	3	322	368	183	367	13.4
RB30040		405	351.6	6	3.5	3	326	377	212	409	17.2
RB35020	350	400	373.4	3.5	1.6	3	363	383	54.1	143	3.9
RB40035	400	480	440.3	5	3	3.5	422	459	156	370	14.5
RB40040	400	510	453.4	6	3.5	3.5	428	479	241	531	23.5
RB45025	450	500	474	3.5	1.6	1.5	464	484	61.7	182	6.6
RB50025	500	550	524.2	3.5	1.6	1.5	514	534	65.5	201	7.3
RB50040		600	548.8	6	3	3.5	626	572	239	607	26
RB50050		625	561.6	6	3.5	3.5	536	587	267	653	41.7
RB60040	600	700	650	6	3	4	627	673	264	721	29
RB70045	700	815	753.5	6	3	4	731	777	281	836	46
RB80070	800	950	868.1	6	4	5	836	900	468	1330	105

RE系列											单位：mm
型号	主要尺寸						靠肩尺寸		基本额定负荷（径向）		重量 (Kg)
	内径 d	外径 D	滚子节圆直径 dp	油孔		r	ds	Dh	C KN	Co KN
	内径 d	外径 D	滚子节圆直径 dp	a	b	r	ds	Dh	C KN	Co KN
RE12016	120	150	136	3	1.6	1	127	141	24.2	43.2	0.72
RE12025	120	180	152	3.5	2	2	133	164	66.9	100	2.62
RE13015	130	160	146	3	1.6	1	137	152	25	46.7	0.72
RE13025	130	190	162	3.5	2	2	143	174	69.5	107	2.82
RE14016	140	175	160	3	1.6	1.5	147	162	25.9	50.1	1
RE14025	140	200	172	3.5	2	2	154	185	74.8	121	2.96
RE15013	150	180	166	2.5	1.6	1	158	172	27	53.5	0.68
RE15025		210	182	3.5	2	2	164	194	76.8	128	3.16
RE15030		230	192	4.5	3	2	173	210	100	156	5.3
RE16025	160	220	192	3.5	2	2	173	204	81.7	135	3.14
RE17020	170	220	196.1	3.5	1.6	2	184	198	29	62.1	2.21
RE18025	180	240	210	3.5	2	2	195	225	84	143	3.44
RE19025	190	240	219	3.5	1.6	1.5	202	222	41.7	82.9	2.99
RE20025	200	260	230	3.5	2	2.5	215	245	84.2	157	4
RE20030		280	240	4.5	3	2.5	221	258	114	200	6.7
RE20035		295	247.7	5	3	2.5	225	270	151	252	9.6
RE22025	220	280	250.1	3.5	2	2.5	235	265	92.3	171	4.1
RE24025	240	300	272.5	3.5	2	3	256	281	68.3	145	4.5
RE25025	250	310	280.9	3.5	2	3	268	293	69.3	150	5
RE25030		330	287.5	4.5	3	3	269	306	126	244	8.1
RE25040		355	300.7	6	3.5	3	275	326	195	348	14.8
RE30025	300	360	332	3.5	2	3	319	344	75.5	178	5.9
RE30035		395	345	5	3	3	322	368	183	367	13.4
RE30040		405	351.6	6	3.5	3	326	377	212	409	17.2
RE35020	350	400	376.6	3.5	1.6	3	363	383	54.1	143	3.9
RE40035	400	480	440.3	5	3	3.5	422	459	156	370	14.5
RE40040	400	510	453.4	6	3.5	3.5	428	479	241	531	23.5
RE45025	450	500	476.6	3.5	1.6	1.5	464	484	61.7	182	6.6
RE50025	500	550	526.6	3.5	1.6	1.5	514	534	65.5	201	7.3
RE50040		600	548.8	6	3	3.5	526	572	239	607	26
RE50050		625	561.6	6	3.5	3.5	536	587	267	653	41.7
RE60040	600	700	650	6	3	4	627	673	264	721	29

CRB/CRBC系列														单位：mm
型号		主要尺寸			安装尺寸			基本额定动载荷 CRBC	基本额定静载荷 CRBC	基本额定动载荷 CRB	基本额定静载荷 CRB		重量
带保持器	满装滚子	内径 d	外径 D	r	da	Da	C KN		Co KN	C KN	Co KN		kg
CRBC12025	CRB12025	120	180	1.5	132	164	47.7		70.5	59.9		95.4	2.62
CRBC13025	CRB13025	130	190	1.5	140	172	49.2		74.8	61		99.8	2.82
CRBC14025	CRB14025	140	200	1.5	151	183	50.7		79.2	64.1		108	2.96
CRBC15025	CRB15025	150	210	1.5	160	192	53.8		87.7	65		113	3.16
CRBC15030	CRB15030	150	230	1.5	166	202	69.2		108	85.9		144	5.3
CRBC20025	CRB20025	200	260	2	208	239	60.2		110	75.3		148	4
CRBC20030	CRB20030		280	2	218	262	108		178	133		234	6.7
CRBC20035	CRB20035		295	2	221	274	137		215	168		282	9.58
CRBC25025	CRB25025	250	310	2.5	259	290	67.2		136	83.9		183	4.97
CRBC25030	CRB25030		330	2.5	265	310	116		208	146		283	8.1
CRBC25040	CRB25040		355	2.5	271	330	179		299	215		382	14.8
CRBC30025	CRB30025	300	360	2.5	310	341	73.8		162	91.9		217	5.88
CRBC30035	CRB30035		395	2.5	318	372	163		299	205		408	13.4
CRBC30040	CRB30040		405	2.5	321	381	194		351	235		451	17.2
CRBC40035	CRB40035	400	480	2.5	414	457	133		300	165		400	14.5
CRBC40040	CRB40040		510	2.5	423	483	222		455	270		590	23.5
CRBC40070	CRB40070		580	2.5	430	532	470		811	576		1060	72.4
CRBC50040	CRB50040	500	600	2.5	517	573	212		497	259		648	26
CRBC50050	CRB50050		625	2.5	531	592	247		561	306		747	41.7
CRBC50070	CRB50070		680	2.5	530	633	536		1020	653		1330	86.1
CRBC60040	CRB60040	600	700	3	621	676	231		581	287		774	30.6
CRBC60070	CRB60070		780	3	630	734	591		1230	700		1540	102
CRBC600120	CRB600120		870	3	643	817	1250		2210	1490		2800	274
CRBC70045	CRB70045	700	815	3	730	785	250		681	313		917	46.5
CRBC70070	CRB70070		880	3	731	834	630		1390	766		1810	115
CRBC700150	CRB700150		1020	3	751	953	1660		3010	1980		3820	478
CRBC80070	CRB80070	800	950	4	831	907	417		1090	513		1440	109
CRBC800100	CRB800100	800	1030	4	840	972	936		2040	1140		2640	247

CRBH系列									单位：mm
型号		主要尺寸			安装尺寸		基本额定动载荷	基本额定动载荷	重量
型号		内径 d	外径 D	r	da	Da	C KN	Co KN	kg
CRBH12025A	CRBH12025AUU	120	180	1	132	168	73.4	108	2.62
CRBH13025A	CRBH13025AUU	130	190	1	142	178	75.9	115	2.82
CRBH14025A	CRBH14025AUU	140	200	1	152	188	81.9	130	2.96
CRBH15025A	CRBH15025AUU	150	210	1	162	198	84.6	138	3.16
CRBH20025A	CRBH20025AUU	200	260	1	212	248	92.3	169	4
CRBH25025A	CRBH25025AUU	250	310	1.5	262	298	102	207	4.97

RU系列											单位：mm
型号	主要尺寸						靠肩尺寸		基本额定载荷（径向）		重量
	内径 d	外径 D	滚子节圆直径 dp	油孔	倒角rmin	宽度 BB1	ds	Dh	C KN	Co KN	Kg
RU124(G)	80	165	124	3.1	1	22	114	134	33.1	50.9	2.6
RU124X
RU148(G)	90	210	147.5	3.1	1.5	25	133	162	49.4	76.8	4.9
RU148X
RU178(G)	115	240	178	3.1	1.5	28	161	195	80.3	135	6.8
RU178X
RU228(G)	160	295	227.5	6	2	35	208	246	104	173	11.4
RU228X
RU297(G)	210	380	297.3	6	2.5	40	272	320	156	281	21.3
RU297X
RU445(G)	350	540	445.4	6	2.5	45	417	473	222	473	35.4
RU445X
