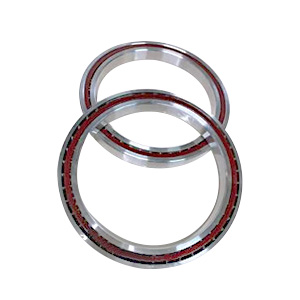

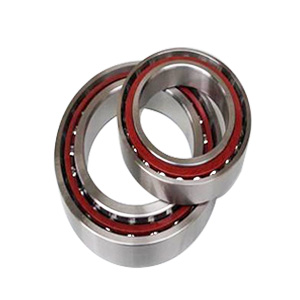

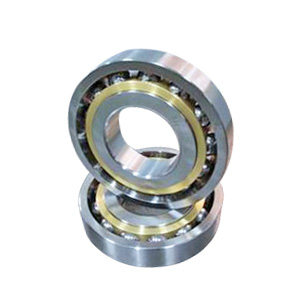

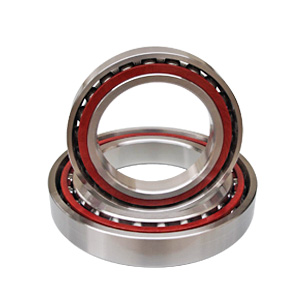

Angular Contact Ball Bearings

Angular contact ball bearing: Angular contact ball bearing has a high limit speed, can bear radial load and axial load at the same time, and can also bear pure axial load. Its axial load capacity is determined by the contact angle.

Availability:



Inquire

Product Description

Angular contact ball bearing has a high limit speed, can bear radial load and axial load at the same time, and can also bear pure axial load. Its axial load capacity is determined by the contact angle. The higher the bearing capacity, the smaller the contact angle and the smaller the axial load.

Conversely, the smaller the contact angle, the greater the ability to withstand radial loads, and the more suitable for high-speed applications. Single row angular contact ball bearings can only bear axial load in one direction.

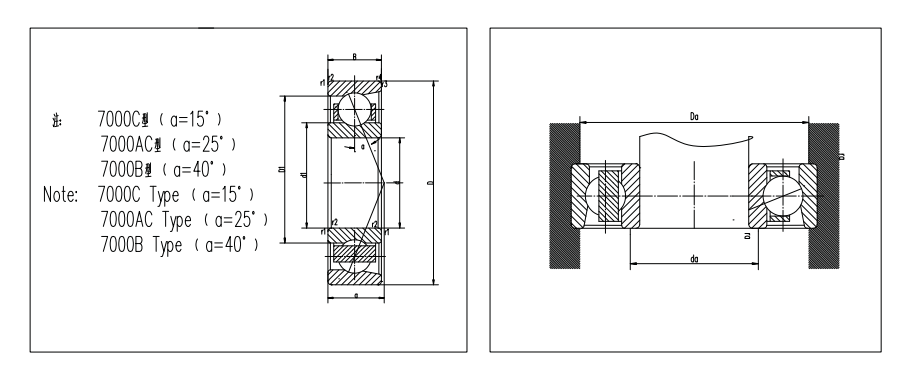

Angular Contact Ball Bearings

When bearing radial load, it will cause additional axial force and can only limit the axial displacement of the shaft or housing in one direction. Angular contact ball bearings have a contact angle of 40 degrees, so they can withstand large axial loads.

Angular contact ball bearings are of non-separable design, with shoulders at different heights on both sides of the inner and outer rings. To increase the load capacity of the bearing, one of the shoulders is machined lower, allowing the bearing to fit more balls.

Angular contact ball bearing series parameters

Designation	Basic Sized						Abutment and fillet dimensions					Basicload ratings		Limit	Speed	weight
(Design)							da	Da	Db	ra	rb	cynamic	static			weight
	inner ring	outer ring	width	chamfer			da	Da	Db	ra	rb	Cr	Cor	erase	oil
urrent Code	d		B	r1.2	r3.4	a	min	max	max	max	max	Cr	Cor	erase	oil
	mm						mm					KN		r/min		kg
7052AC	260	400	65	4	1.5	-	278	382	-	3	1.5	346	490	2201	3300	28.5
7056AC	280	420	65	4	1.5	179	298	402	411	3	1.5	319	500	900	1400	30
7060AC	300	460	74	4	1.5	147	318	442	451	3	1.5	423	695	950	1400	42.5
7064AC	320	480	74	4	1.5	153	338	462	471	3	1.5	436	735	900	1300	44.5
7068AC	340	520	82	5	2	165	362	498	510	4	2	507	900	850	1200	61.5
7072AC	360	540	82	5	2	171	382	518	530	4	2	520	950	850	1200	62.5
70876AC	380	480	31	2	1	142	390	470	474	2		190	345	850	1200	13.5
7076AC	380	560	82	5	2	238	402	538	550	4	2	468	880	750	1000	65.5
7080AC	400	600	g0	5	2	189	422	578	590	4	2	605	1180	750	1000	85
7084AC	420	620	90	5	2	195	442	598	610	4	2	605	1180	750	1000	88.5
7088AC	440	650	94	6	3	204	468	622	636	5	2.5	650	1320	700	950	100
70892	460	580	37	1	169	472	568	574	2	1	265	560	750	1000	24.5	24.5
7092AC	460	680	100	6	3	215	488	652	666	5	2.5	689	1460	670	900	120
7096Ac	480	700	100	6	3	220	508	672	686	5	2.5	702	1530	630	850	125
70/500Ac	500	720	100	6	3	226	528	692	706	5	2.5	715	1600	600	800	130
708/500AC	500	620	37	2.1	1.1	180	512	608	613	2	1	276	620	670	900	27
70/530AC	530	780	112													175
70/560AC	560	820	115													195
70/600Ac	600	870	118													230
708/600AC	600	730	42													38.5
70/630AC	630	920	128													296.5
718 series
71824AC	120	150	16													0.62
71826AC	130	165	18													0.788
71828Ac	140	175	18													0.84
71830AC	150	190	20	1.2	0.6	32.8	156	184	186.8	1.1	0.6	104	144	7000	11000	0.982
71832AC	160	200	20	1.1	0.6	52.1	166	194	196.8	1.1	0.6	114	150	5000	8000	1.233
71834AC	170	215	22	1.2	0.6	一	一	一		1.1	0.6	-	-			1.45
71836AC	180	225	22	.				一	一	-	.	150	236	3000	5000	1.62
71838AC	190	240	24							-	.	150	235	3001	5000	1.95
71840Ac	200	250	24	1.5			一	一		一	.	150	235	3002	5000	2.5
71844AC	220	270	24					-	-	-	-	150	235	3003	5000	2.36
71848AC	240	300	28	一	一	一	一	一	-	一	-	150	235	3004	5000	4.5
71852AC	260	320	28	2	1.1	98	270	310	313	2	1	127	190	1400	1900	4.85
71856AC	280	350	33	2	1	107	290	340	344	2	1	156	240	1200	1700	7.2
71860AC	300	380	38	一	一	一	一	一	-	一	一	150	235	3007	5000	11.1
71864AC	320	400	38	2.1	1.5	-	-	一	一	-	一	150	235	3008	5000	10
71868AC	340	420	38	2.1	1	129	352	408	410	2	1	216	390	950	1400	10.5
71872AC	360	440	38	2.1	1.1	112	372	428	443	2	1	234	425	1800	2600	12
71876AC	380	480	46	2.1	1.1	123	392	468	473	2	1	291	500	1700	2400	18
71880AC	400	500	46	-		-	-	-	-	-	-	150	235	3012	5000	21.7
71884AC	420	520	46				-	一	一	一	-	150	235	3013	5000	22.8
71888AC	440	540	46				-	一	一	一	一	150	235	3014	5000	23.6
71892AC	460	580	56	3	3	178	474	566	566	2.5	2.5	371	765	750	1000	34.5
71896AC	480	600	56	-	-	_	-	一	.	.	-	150	235	3016	5000	36.6
718/500Ac	500	620	56	3	1.1	190	514	606	613	2.5	1	390	850	670	900	38
718/530AC	530	650	56													39.5
718/560AC	560	680	56													41.5
718/600AC	600	730	60													47
718/670AC	670	820	69													80
718/710AC	710	870	74													93.5
719 series
71924AC	120	165	22													1.39
71926AC	130	180	24													1.59
71928AC	140	190	24													1.7
71930AC	150	210	28	2	1	38	160	201	205	2	1	125	146	6300	9500	2.55
71932AC	160	220	28	2	1	58	170	211	215	2	1	124	153	5300	8000	2.7
71934AC	170	230	28	2	1	41	180	221	225	2	1	133	166	5600	8500	2.85
71936AC	180	250	33	2	1	67	189	241	245	2	1	150	236	3000	5000	4.2
71938AC	190	260	33	2	1	47	19g	251	255	2	1	153	247	2800	4600	4.45
71940AC	200	280	38	2.1	1.1	51	209	271	275	2	1	187	395	2600	4300	7.1
71944AC	220	300	38	2.1	1.1	80	231	289	295	2	1	195	323	2200	3800	7.2
71948AC	240	320	38	2.1	1.1	57	251	309	315		1	225	310	2300	3500	8.37
71952AC	260	360	46	2.1	1.1	113	272	348	353	2	1	242	345	1300	1800	13.5
71956AC	280	380	46	2.1	1.1	119	292	368	373	2	1	255	380	1100	1600	15
71960Ac	300	420	56	3	1.1	76	313	405	414	2.5	1.1	267	400	2002	2900	20
71964AC	320	440	56	3	1.1	79	333	425	434	2.5	1.1	268	400	2003	2900	21.5
71968Ac	340	460	56	3	1.1	143	354	446	453	2.5	1	338	585	900	1300	27
71972AC	360	480	56	3	1.1	149	374	466	473	2.5	1	338	610	800	1100	28.5
71976AC	380	520	65	4	1.5	137	398	502	511	3	1.5	410	735	850	1200	40.5
71980AC	400	540	65	4	1.5	168	418	522	531	3	1.5	423	780	800	1100	42
71984AC	420	560	65	4	1.5	174	438	542	551	3	1.5	423	800	750	1000	44.5
71988Ac	440	600	74	4	3	158	455	585	593	3	1.5	274	400	2009	2900	61
71992AC	460	620	74	4	1.5	163	478	602	611	3	1.5	507	1040	850	1200	58
719/500AC	500	670	78	5	2	208	520	650	660	4	2	553	1220	630	850	78
719/530AC	530	710	82													92
719/560AC	560	750	85													105
719/600Ac	600	800	90													125
72 series
7224AC	120	215	40
7226AC	130	230	40
7228AC	140	250	42
7230AC	150	270	45	3	1.1	111	164	256	263	2.5		195	224	1700	2400	11.5
7232AC	160	290	48	3	1.1	118	174	276	283	2.5	1	199	236	1600	2200	14
7234AC	170	310	52	4	1.5	127	188	292	310	3	1.5	221	270	1600	2200	17.5
7236AC	180	320	52	4	1.5	131	198	302	311	3	1.5	251	320	1500	2000	18
7238AC	190	340	55	4	1.5	139	208	322	331	3	1.5	276	355	1400	1900	22
7236AC	180	320	52	4	1.5	131	198	302	311	3	1.5	251	320	1500	2000	18
7238AC	190	340	55		1.5	139	208	322	331	3	1.5	276	355	1400	1900	22
7240AC	200	360	58	4	1.5	146	218	342	351	3	1.5	300	459	2800	4600	25.2
7244AC	220	400	65	4	1.5	146	218	342	351	3	1.5	285	473	2600	4300	37
7248AC	240	440	72	4	1.5	180	258	422	431	3	1.5	364	540	1000	1500	49
7252AC	280	480	80	5	2	195	282	458	470	4	2	507	780	900	1300	66
7256AC	280	500	80	5	2	204	302	478	490	4	2	520	850	850	1200	69.5
7260AC	300	540	85	5	2.1	219	322	518	528	4	2	553	930	850	1200	86.5
7264B	320	580	92	5	2	236	342	558	568	4	2	624	1120	750	1000	110
7268B	340	620	92	6	3	248	368	592	606	5	2.5	702	1340	750	1000	125
7272B	360	650	95	6	3	261	388	622	636	5	2.5	650	1250	700	950	145
7280B	400	720	103	6	3	287	428	692	700	5	2.5	728	1500	s00	800	190
73 series
7324AC	120	260	55													14.5
7326AC	130	280	58													17.5
7328AC	140	300	62													21.5
7330AC	150	320	65													26
7332AC	160	340	68													32.6
7334AC	170	360	72													36
7336Ac	180	380	75	4	2	156	198	362	371	3	2	371	490	1300	1800	42
7338AC	190	400	78	5	2	164	212	378	390	4	2	410	560	1200	1700	48.5
7340AC	200	420	80	5	2	170	222	398	410	4	2	449	655	1100	1600	53
7344B	220	460	88	5	2	187	242	438	450	4	2	494	720	10000	1500	70
7348B	240	500	95	5	2	203	262	478	490	5	2.5	475	670	900	1300	88.5
