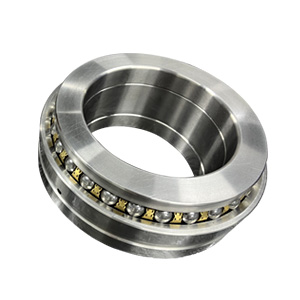

Double direction Angular Contact Thrust Ball Bearings

The characteristic of the double direction angular contact thrust ball bearings is that it can bear the combined load of radial and axial loads at the same time, and limit the axial displacement of the shaft on both sides.

Availability:



Inquire

Product Description

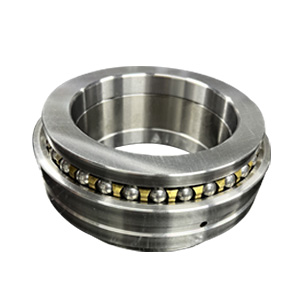

Double direction angular contact thrust ball bearings design view

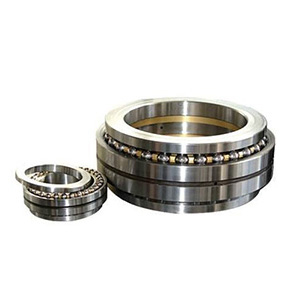

Two-way thrust angular contact ball bearings

It is composed of outer ring, inner ring, steel ball and cage, which can work stably at high speed.

When installing, it should be noted that although the bearing can bear bidirectional axial load, if there is a gap for ball loading on one side, care should be taken not to let the main axial load pass through the groove on the side with the gap.

Double direction angular contact thrust ball bearings parameter list

Designation		Basic Sized					Abutment and fillet dimensions					Basic load ratings		Limit	Speed	weight
(Desi	gn)						da	Da	Db	ra	rl	adynamic	tsatc
		inner ring	outor ring	width	chamfor		da	Da	Db	ra	rl	r	Cor		oil
Curront Code	old	d	D	B	r1.2	r3.4	min	max	max	max	max	r	Cor		oil
		mm					mm					KN		r/min		kg
234426	2268126	130	200	84
234428	2268128	140	210	84
234430	2268130	150	225	90
234432	2268132	160	240	96								156	640	2800	3400	14
234434	2268134	170	260	108								178	790	2400	3000	18.9
234436	2268136	180	280	120								235	840	2000	3000	20.8
234438	2268138	190	290	120								240	900	1900	2800	24.3
234440	2268140	200	310	132								265	1100	1800	2600	30.9
234444	2268144	220	340	144								340	1330	1600	2200	41.4
234448	2268148	240	360	144								350	1420	1500	2000	44.8
234452	2268152	260	400	164								400	1680	1400	1900	56.5
234456	2268156	280	420	164
234460	2268160	300	460	190								480	2170	1200	1700	98.8
234464	2268164	320	480	190								495	2310	1150	1650	90.3
234468	2268168	340	520	212								580	2850	1100	1600	122
234472	2268172	360	540	212								590	2950	1000	1500	128
234476	2268176	380	560	212								610	3150	960	1400	154

Double direction Angular Contact Thrust Ball Bearings
